X-ray Diffractometer
X-선 회절 분석기

담당자 : 성수진 | 041-537-8762
이메일 : sujin@sch.ac.kr
원리 및 기능
X선을 시료에 조사하여 얻어지는 회절 패턴을 통해 물질의 결정구조를 분석하는 장비로, 분말 시료의 상 식별 및 결정성 평가에 활용된다.
기기 활용
○ 분말 시료의 결정상 및 결정구조 분석
○ 결정성 및 상 식별(Phase identification)
○ 재료의 결정 특성 평가
○ 세라믹, 무기재료 및 기능성 소재의 기초 구조 분석
사양
제작사: Rigaku

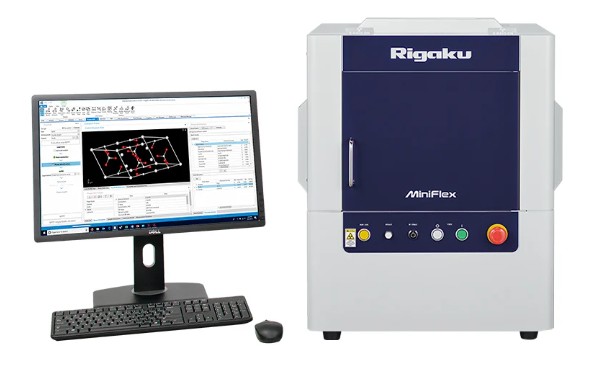

모델명: MiniFlex 600
X-ray generator: 600 W (40 kV / 15 mA)
X-ray tube: Cu target
측정 각도 범위: 3° ~ 135° (2θ)
스캔 속도: 0.01 ~ 100°/min (2θ)
안내 / Notice:
승인 대기 (PENDING) / Awaiting approval
캘린더 이벤트 제목에 “(PENDING)”이라고 표시된 경우, 예약 신청은 정상적으로 접수되었으나 담당자의 검토 및 승인이 필요함을 의미합니다.
승인 완료 (APPROVED) / Approved
담당자의 승인이 완료되면 이벤트 제목의 “(PENDING)”이 “(APPROVED)”로 변경되며, 이는 예약이 최종 확정되었음을 의미합니다
| 사용 유형 | 구분 | 기본요금 (1시간) | 추가요금 (30분당) |
| 직접사용 | 센터소속학과 | 13,750원 | 2,500원 |
| 직접사용 | 교내 | 16,500원 | 3,000원 |
| 의뢰사용 | 센터소속학과 | 27,500원 | 5,000원 |
| 의뢰사용 | 교내 | 33,000원 | 6,000원 |
| 의뢰사용 | 외부 | 55,000원 | 10,000원 |
※ 1시간 이후에는 30분 단위로 추가요금이 적용됩니다.
※ 외부·타대학 소속은 직접사용이 불가하며, 의뢰사용만 가능합니다.
※ Additional fees apply in 30 minute increments after the first hour.
※ External and non-partner university affiliations are not eligible for Direct use, only Request for Analysis is available.
측정 시간 자동 계산 안내 / How measurement time is calculated
총 예상 측정 시간은 “측정 조건”과 “개수 및 샘플 정보” 항목에 입력하신 내용을 바탕으로 자동 계산됩니다. 정확한 계산을 위해 아래 형식을 참고하여 작성해 주세요.
Your total estimated measurement time is automatically calculated from what you enter in the “Measurement conditions” and “Quantity and Sample Information” fields. Please follow the format below for an accurate estimate.
1. 측정 조건 (Measurement conditions)
• 측정 각도 범위 / Scan angle range: Start: 10, Stop: 80 또는 10~80°
• 스캔 속도 / Scan speed: Speed: 2 또는 2도/min 또는 2°/min
예시 / Example: Start: 10, Stop: 80, Speed: 2
(10°에서 80°까지, 분당 2도 속도로 스캔 / scans from 10° to 80° at 2°/min)
2. 개수 및 샘플 정보 (Quantity and Sample Information)
전체 샘플 개수를 명확히 기재해 주세요. / Please state the total number of samples clearly.
예시 / Example: 총 3개 또는 3 samples 또는 Total 3 ea
여러 개일 경우 목록으로 작성하셔도 자동 인식됩니다. / Listing each sample also works — the count is detected automatically.
계산 방식 / How the calculation works
(측정 각도 범위 ÷ 스캔 속도 + 샘플당 준비 시간 5분) × 샘플 개수
결과는 30분 단위로 올림 처리되며, 최대 24시간으로 제한됩니다.
(Scan range ÷ scan speed + 5 min prep per sample) × number of samples.
The result is rounded up to the nearest 30 minutes, with a 24-hour maximum.
Start: 10, Stop: 80, Speed: 2, 3개 샘플 / 3 samples)각도 범위 / Scan range: 80 − 10 = 70°
샘플당 스캔 시간 / Scan time per sample: 70 ÷ 2 = 35분 / 35 min
샘플당 준비 시간 / Prep time per sample: 5분 / 5 min
샘플당 합계 / Total per sample: 35 + 5 = 40분 / 40 min
3개 샘플 / 3 samples: 40 × 3 = 120분 / 120 min
30분 단위 올림 / Rounded to nearest 30 min: 120분 / 120 min (변경 없음 / no change)
➜ 최종 예상 시간 / Final estimated time: 2시간 / 2 hours
⚠️ 위 형식과 다르게 작성하시면 시간이 자동 계산되지 않을 수 있으며, 이 경우 담당자가 직접 확인 후 조정합니다.
If the format above is not followed, the system may be unable to calculate the time automatically — the operator will review and adjust manually in that case.
